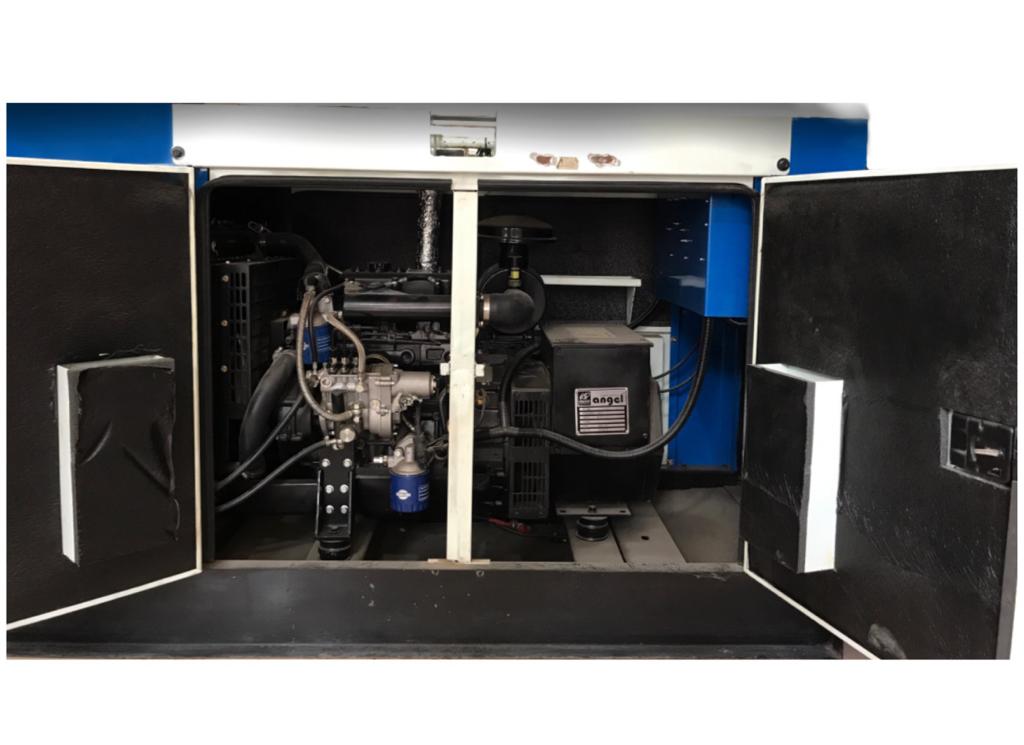

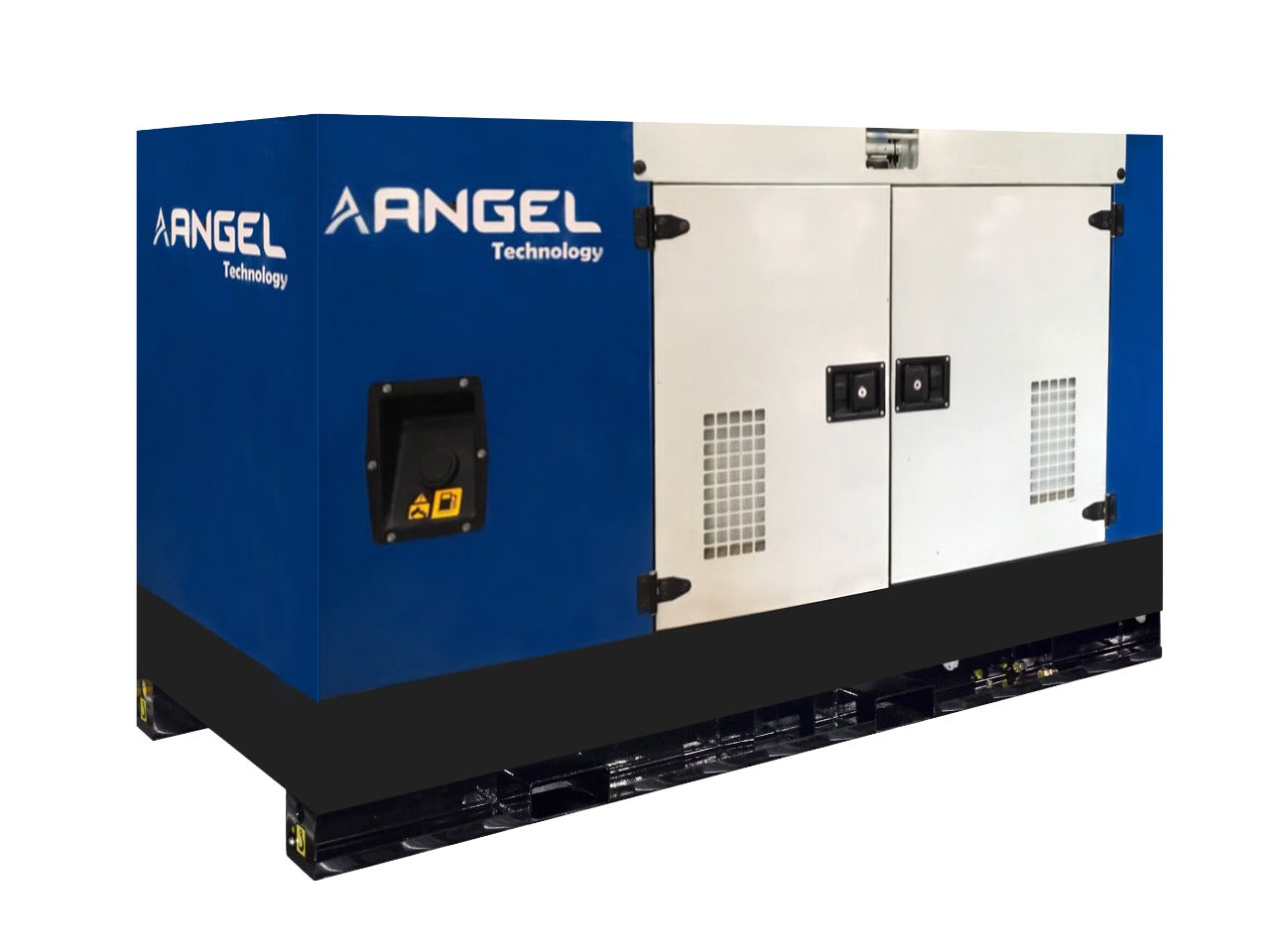

Angel - 15 KW (18.5 KVA) Diesel - Soundless Canopy-Generator - Pwd By YD/QC ISUZU

ANGEL Diesel Commercial Canopy Specification

\nANGEL Diesel Engine Model YD / QC 480 M \nCylinder No. 4 \nBore * Stroke (mm) 80 x 90 \nDisplacement (L) 1.80 @ 50% \nStandby Power Output (kw) 21 \nRated Speed (r/min) 1500-1800 \nSmooth Speed Rate (%) ?5% \nFuel Consumption Rate?g/kW·h? ?245 \nCylinder Line Type Dry \nDiesel Engine Type In-Line, Four-Stroke \nCooling Way Water-Cooled \nAir Intake Type Natural aspiration \nLubricating Type Pressure, Flying Hybrid \nFlywheel Cover Type SAE4# \nFlywheel Type SAE7.5? \nFan Diameter ?410 \n \nANGEL ALTERNATOR  \nCertification: ISO9001, ce \nPlace of Origin: Fujian, China \nRated Voltage: 400V/380V/240V/230V/220V \nRated Output: 15.0 Kw / 18.5 KVA \nSpeed: 1500rpm/1800rpm \nFrequency: 50Hz/60Hz \nPower factor: 0.8 for three phase;1.0 for single phase \nMaterials: 100% copper wire \nInsulation Class Class H \nProtection Class: IP21/IP23 \nAVR for your options: sx460, mx321, sx440 \nWaveform Distortion Rate: ?5% \nVoltage Regulation: ?1% \nColour: Grey, Yellow,etc. \nCertificated: CE,CCC,ISO9001 \n

ANGEL Diesel Generators

\nUsing the direct injection combustion chamber, easy start, low fuel consumption, better price performance. \nCompact structure, Light weight, easier installation. \nStrong power output, good speed-governing performance \nThe key spare part is same as of the high-speed vehicle engine parts, make non-road Quanchai diesel \nengines for genset be good reliability \nThe assembly connection type is in line with SAE standard. \nMechanical speed governor of diesel engine is electronic governor. An electronic governing system ensures a \nstable engine operation, make the engine speed more stable. \nApplication : Commercial premises (commercial Infrastructure), Farm, Mining, Factory, Construction \nBuilding, Public works for utilities, Outdoor event, Hospital, Military, Telecommunications and Data \ncenter etc. \nGenset Frequency : 50HZ & 60HZ \nPhase Numbers : 3 Phase
