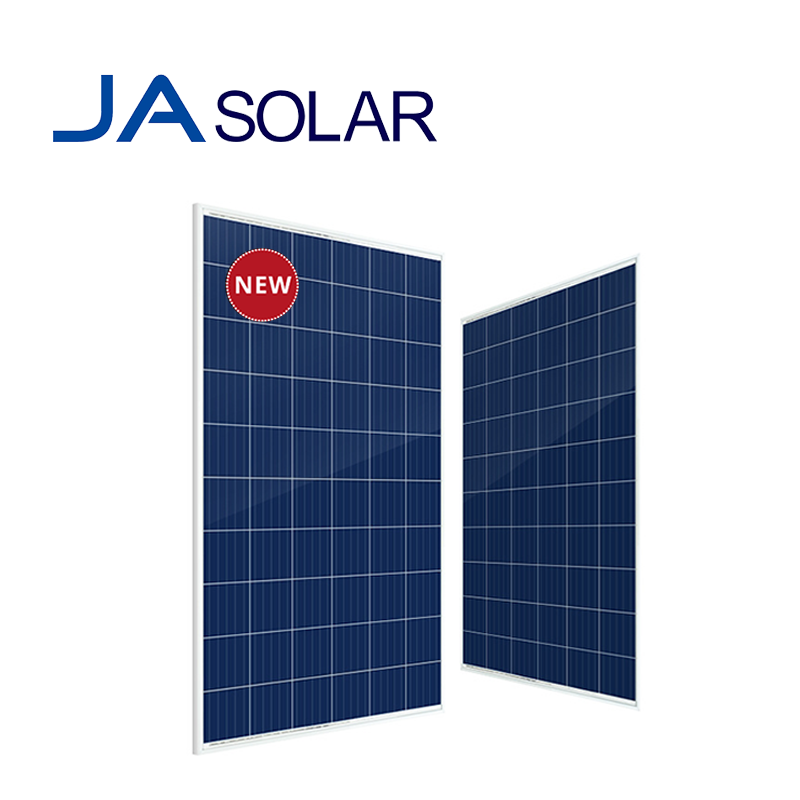

JA - SOLAR PANELS

JA - SOLAR PANELS


SPECIFICATIONS \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n \n

\n Model	\n 535W	\n 540W	\n 545W	\n 550W
\n Open Circuit Voltage	\n 49.45V	\n 49.60V	\n 49.75V	\n 49.90V
\n Short Circuit Current	\n 13.79A	\n 13.86A	\n 13.93A	\n 14.00A
\n Max. Power Voltage	\n 41.47V	\n 41.64V	\n 41.80V	\n 41.96V
\n Max. Power Current	\n 12.90A	\n 12.94A	\n 13.04A	\n 13.11A
\n Efficiency²	\n 20.7%	\n 20.9%	\n 21.1%	\n 21.3%
\n Junction Box	\n \n IP68, 3 diodes \n
\n Cable	\n \n 4mm2, 12 AWG \n
\n Size	\n \n 2279mm x 1134mm x 35mm \n
\n Cell	\n \n 144(6 x 24) monocrystalline cells \n
\n Weight	\n \n 28.6kg±3% \n
